The CRAFTSMAN® Z5400 zero-turn riding mower provides an optimum mowing experience. Its strong 22 HP Kohler® 7,000 twin-cylinder engine provides the power and reliability you need to get the job done. Equipped with a 46-inch steel deck, robust steel frame design, and dual range hydrostatic transmission for durability and control. This mower will provide an exceptional ride as you power through the lawn in comfort and support thanks to a high-back seat. You can add an optional mulching kit to create the perfect finishing touches by returning nutrients to your soil for a healthier lawn. Give your yard a professional look with the CRAFTSMAN® Z5400 zero-turn riding mower.

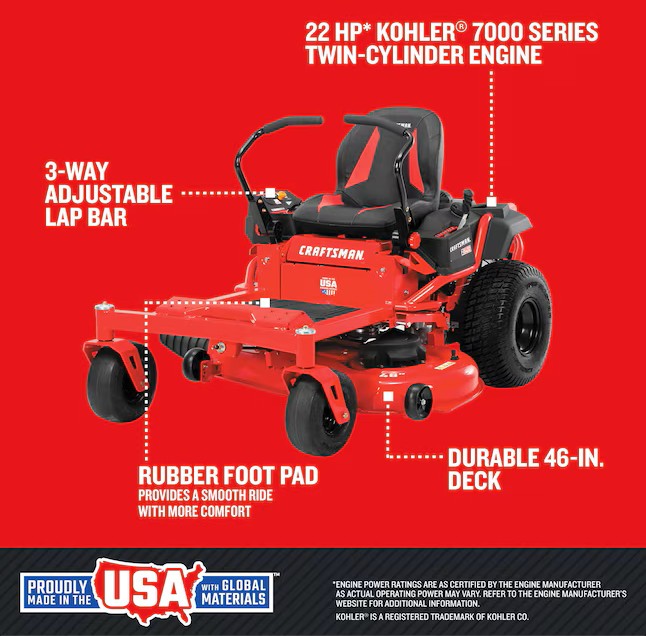

• Powerful engine: Powered by a reliable 22 HP Kohler® 7000 twin-cylinder engine

• Adjustable lap bar: Easy to operate 3-way adjustable lap bar

• Comfort: Rubber foot pad allows you to focus on the task at hand by providing a smoother ride with less vibration

• Increased traction control: 20x8/11x6 Turf Master® tires offer excellent traction without damaging your yard

• Durable: 46-in stamped steel deck holds up against tough obstacles.

• Cut-and-sew seat: High-back seat provides comfort and support to make sure the job gets done right

• Warranty: 3-year limited product manufacturer warranty and 5-year frame warranty

• Engine disclaimer: Engine power ratings are as certified by the engine manufacturer as actual operating power may vary

• See the Parts and Attachments section below and the parts diagram in the images section for all the correct CRAFTSMAN® mowers parts and accessories

Technical Specifications:

• Model: CRAFTSMAN Z5400

• Engine Type: V-twin gas engine

• Engine Power: 22 horsepower (HP)

• Cutting Width: 46 inches (approx. 117 cm)

• Transmission Type: Hydrostatic transmission

• Turning Radius: Zero-turn

• Maximum Speed: Approximately 8-10 mph (13-16 km/h) – may vary by exact model

• Cut Height: Adjustable, typically between 1 inch and 4-5 inches (2.5 to 12.7 cm)

• Cutting Deck: Heavy-duty steel deck, usually with multiple rotary blades

• Fuel Tank Capacity: About 3-4 gallons (11-15 liters)

• Overall Width: Approximately 54 inches (137 cm) – varies with model and attachments

• Weight: Around 550-660 lbs (250-300 kg) depending on options and accessories

• Wheels: Large rear wheels for better traction, swiveling front wheels for easy maneuvering

• Seat: Ergonomic high-back seat, often with suspension (depending on version)

• Starting System: Electric start

• Additional Features: Ergonomic control levers, reinforced frame, safety system preventing engine start without operator seated
