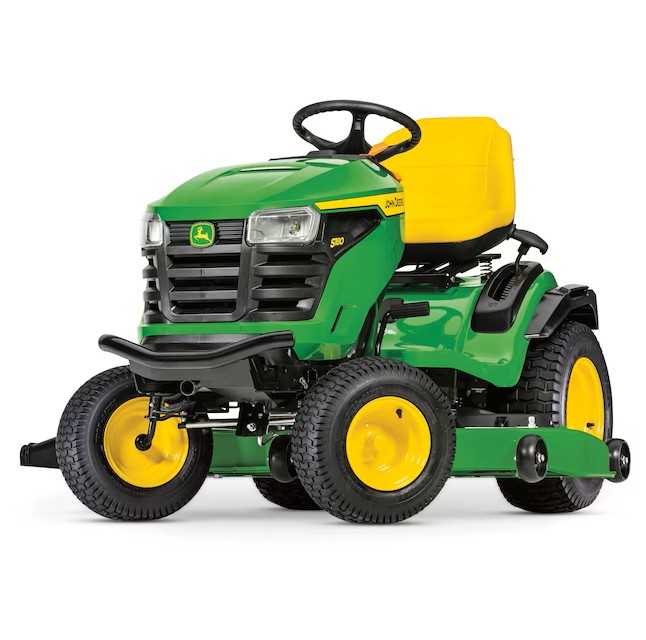

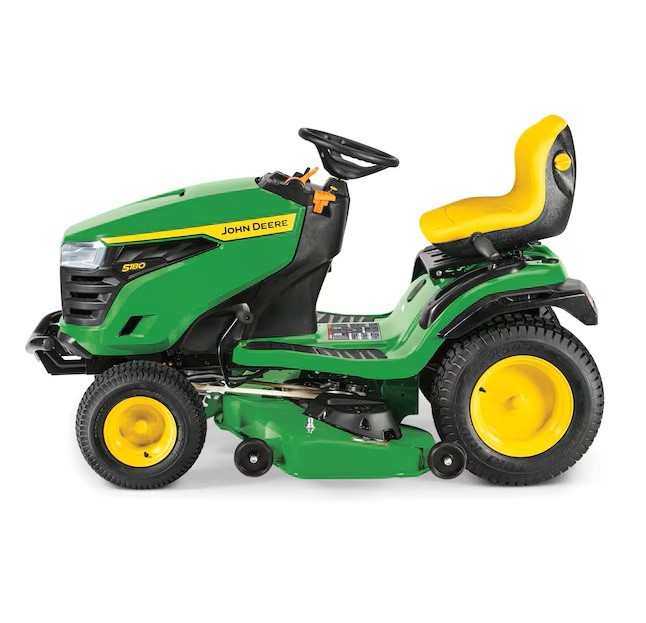

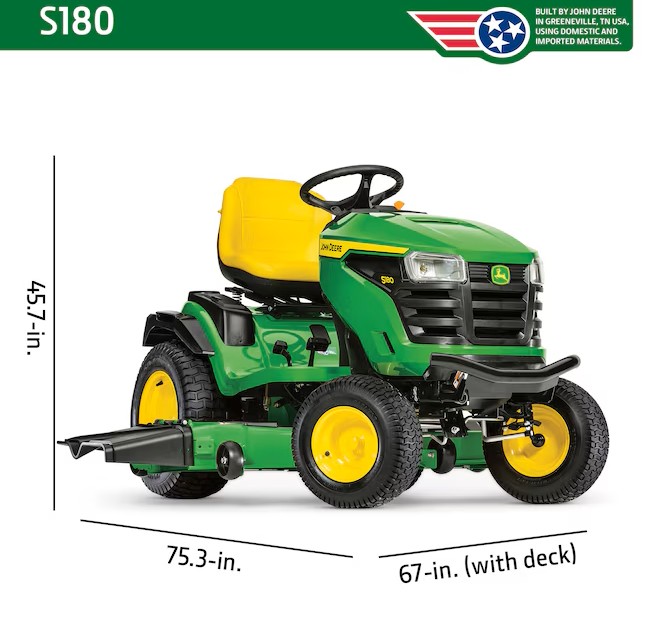

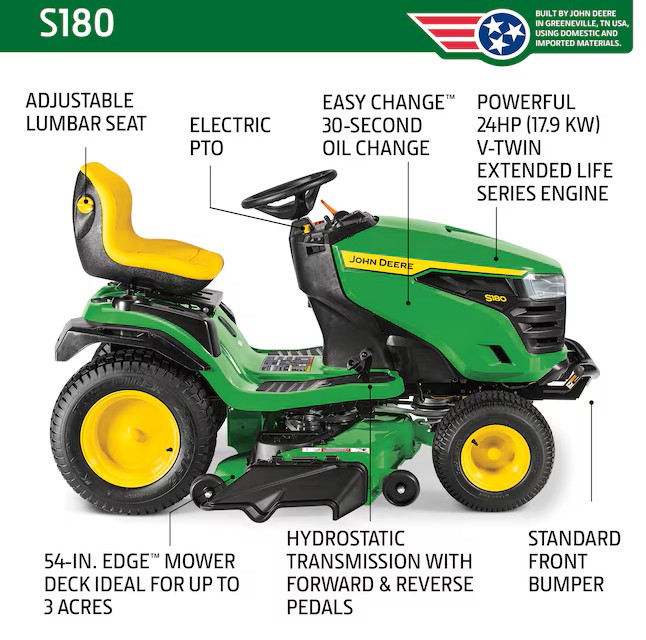

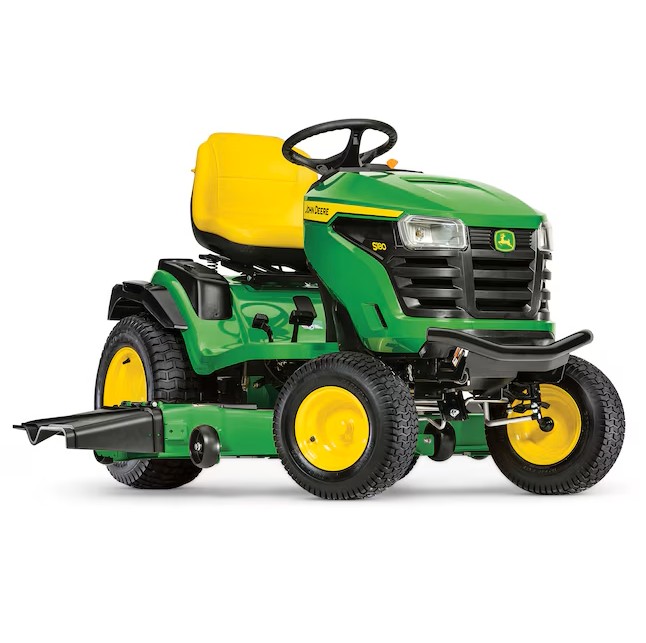

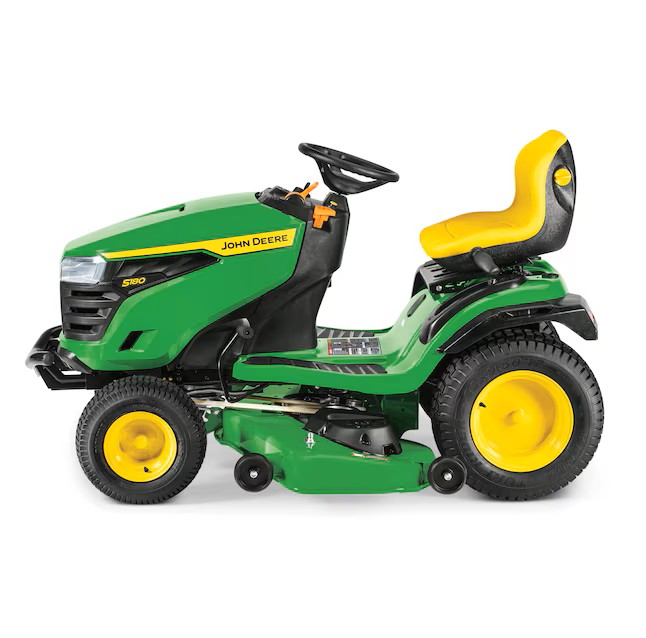

The John Deere S180 lawn tractor is the premium 54-inch deck model of the 100 Series line up. The 24-HP V-Twin John Deere Extended Life Series (ELS) engine has plenty of power to handle tough mulching, mowing and bagging conditions (coverage 2+ acres). The ride is comfortable. The S180 features a heavy-duty hydrostatic transmission, side-by-side foot pedals, enhanced styling, adjustable controls, 15-in seat with lumbar adjustment knob, cruise control, easy read fuel gauge, front bumper, larger front/rear wheels and tires, premium steering wheel and fender flares. The 54-inch Edge™ Cutting System is also time-tested and proven to offer superior cut quality and can be easily equipped to bag or mulch. The S180 also includes the John Deere Easy Change™ 30-Second Oil Change System, the original All-In-One oil and oil filter canister that allows anyone to easily change their tractor oil with no hassles and no mess.

• Built by John Deere in Greeneville, TN, USA – Experience the Comfort of a John Deere

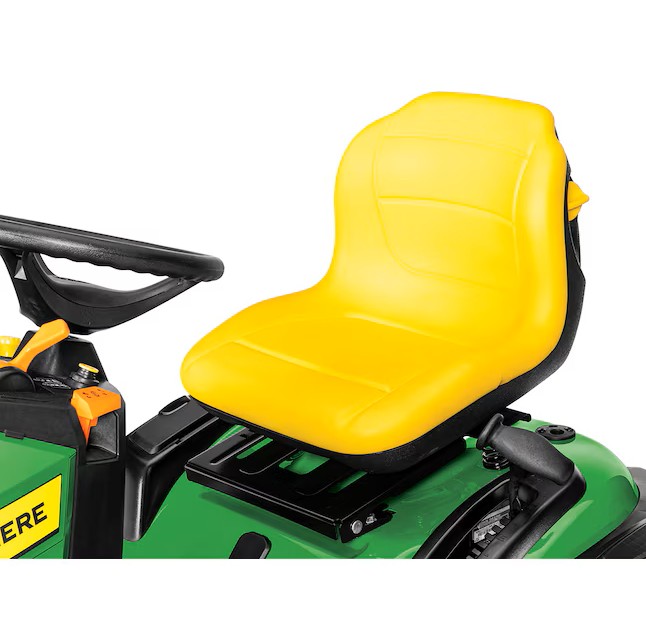

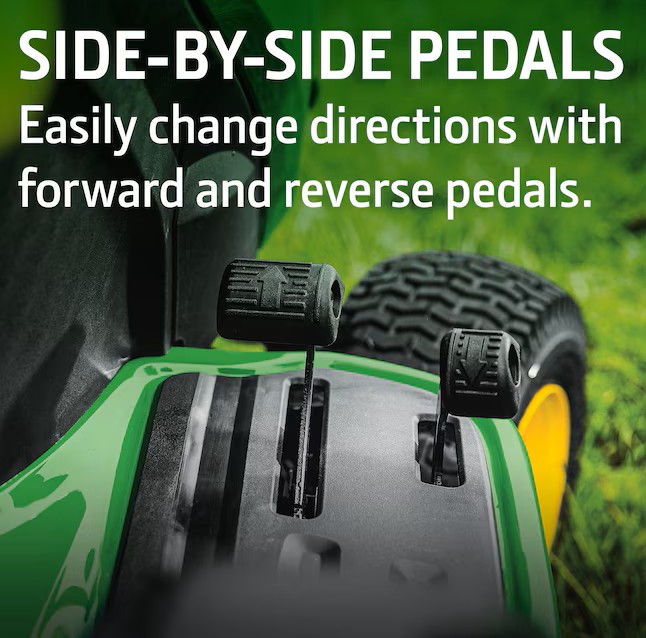

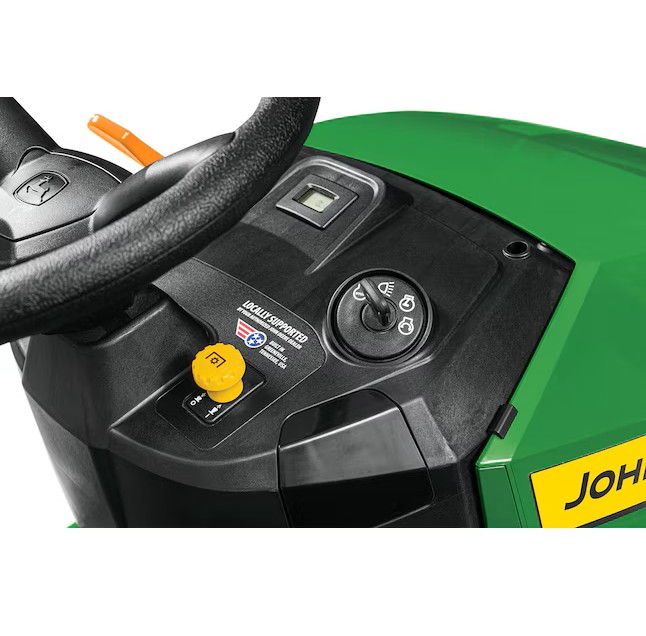

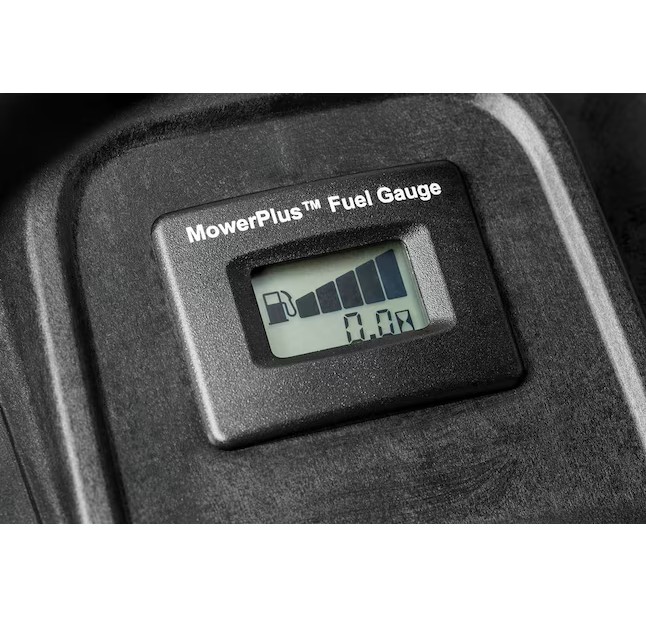

• Heavy-duty hydrostatic transmission, side-by-side foot pedals, enhanced styling, adjustable controls, 15-in seat with lumbar adjustment knob, cruise control, easy read fuel gauge, front bumper, larger tires, premium steering wheel and fender flares

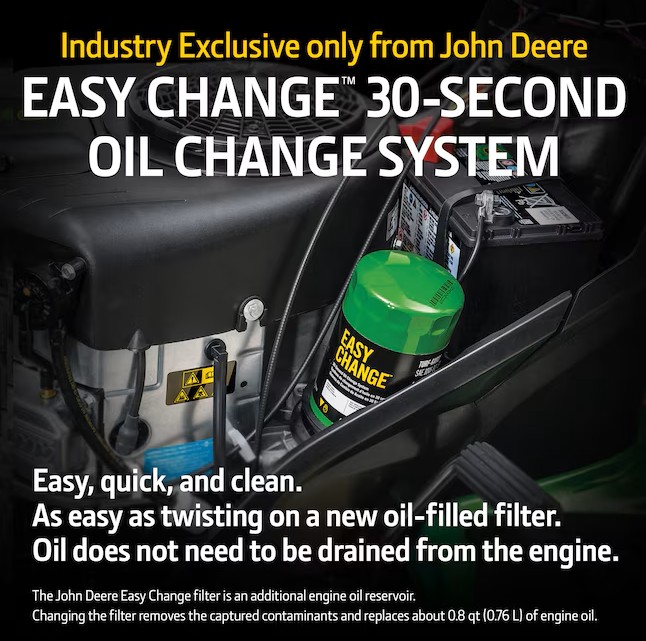

• The S180 includes the John Deere Easy Change™ 30-Second Oil Change System, the original All-In-One oil and oil filter canister that allows anyone to easily change their tractor oil with no hassles and no mess

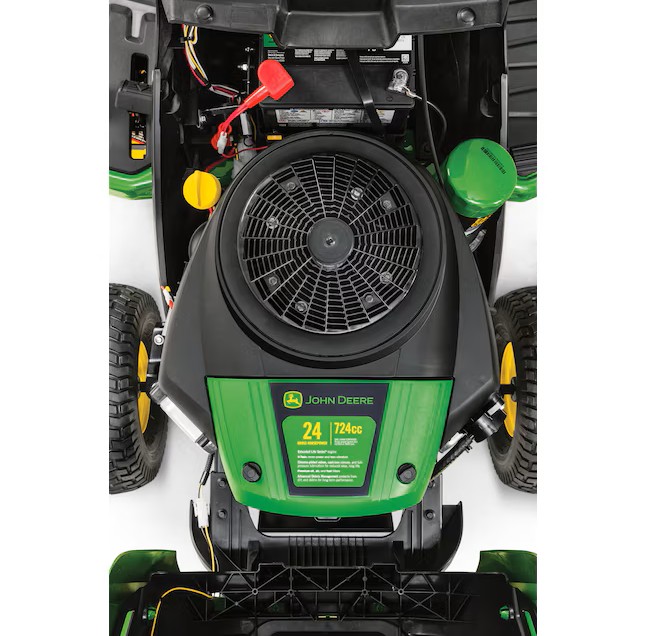

• The 24-HP V-Twin John Deere Extended Life Series (ELS) engine has plenty of power to handle tough mulching, mowing and bagging conditions (coverage 2+ acres)

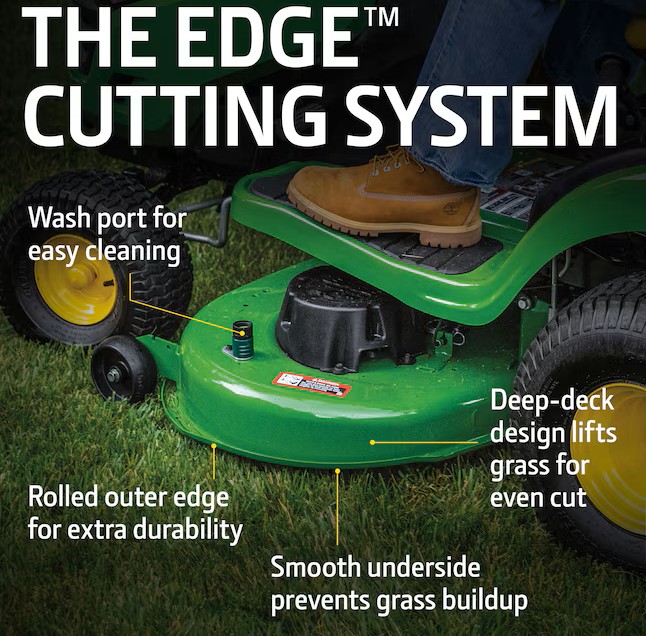

• The 54-in three blade Edge™ Cutting System has a deep deck design, 11-gauge steel and electric PTO blade engagement to provide superior performance and even cuts with 1-in to 4-in cut height selections in 1/4-in increments

• Frame made of full-length welded, 12-gauge steel for reliability

• Compatible parts and attachments: 54-in bagger (2636743), 54-in mulch kit (652451), tow-behind cart (317783), lawn sweeper (538134), 46-in front blade (232032), 44-in snow blower (876847)

• MowerPlus™ Deluxe Smart Connector (2636782) lawn aerator (27064), canopy (623851), cover (227861), Easy Change™ 30-Second Oil System (924091), air filter (291810), 54-in mower blades (652356), 54-in mower belts (317703)

• Hassle-Free Ownership: John Deere 2-year/120-hour bumper to bumper warranty, local John Deere dealer support and a 10-Point Pre-Delivery Inspection prior to sale

Specifications

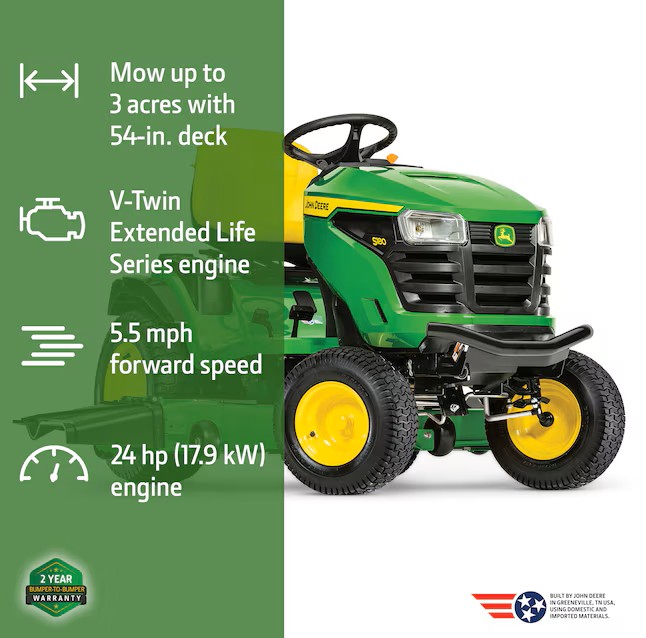

• Engine: 24 HP (17.9 kW) V-Twin Extended Life Series (ELS)

• Displacement: 724 cc

• Transmission: K46 heavy-duty hydrostatic, two-wheel drive with side-by-side pedals

• Cutting Width: 54-inch Edge™ mower deck

• Cutting Height: 1 to 4 inches, adjustable in 0.25-inch increments

• Fuel Capacity: 2.4 U.S. gallons (9.1 liters)

• Top Speed: 5.5 mph forward, 3.2 mph reverse

• Turning Radius: 18 inches (45.7 cm)

• Weight: Approximately 526 lbs (239 kg)

• Warranty: 2-year/120-hour bumper-to-bumper
