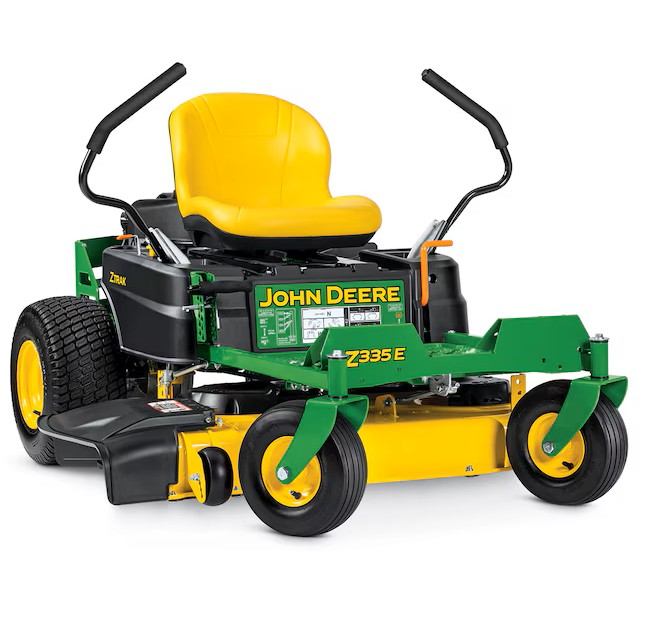

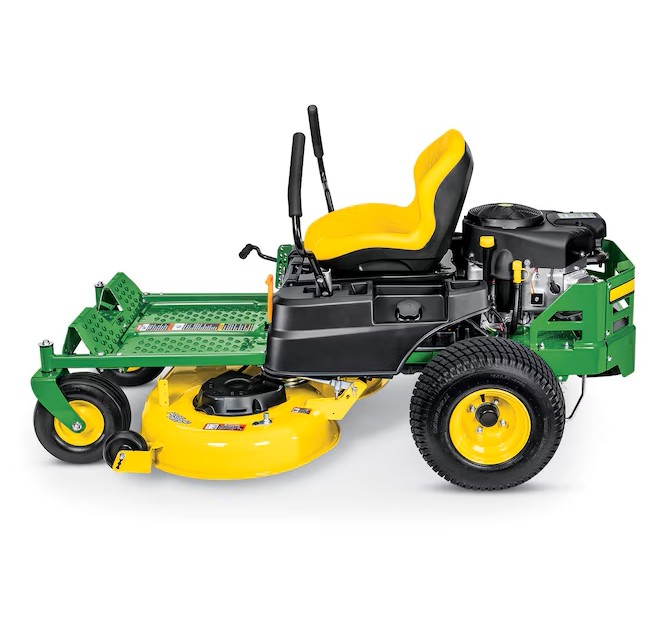

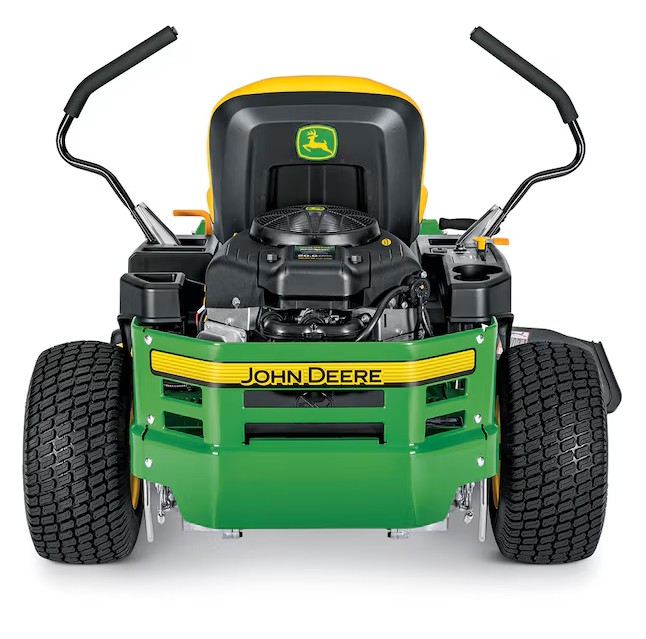

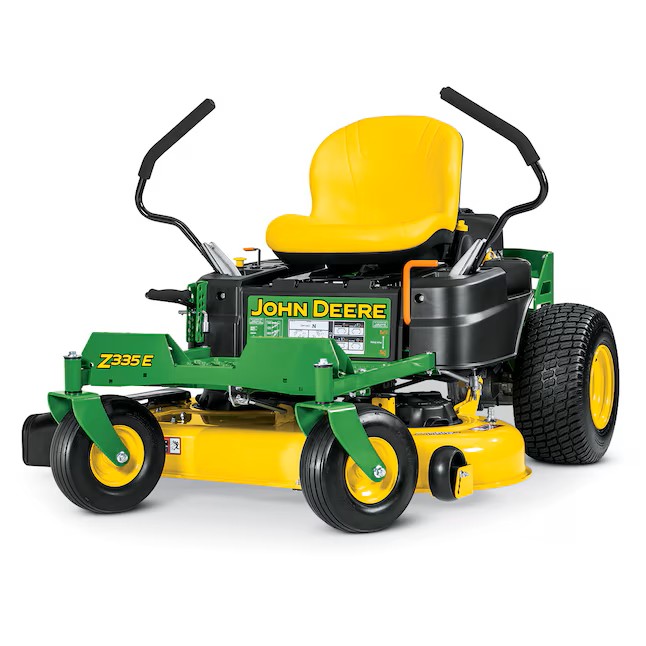

It’s not how fast you mow. It’s how well you mow fast™. Mow well fast with the John Deere 42-in twin blade Accel Deep™ Mower Deck, engineered to process tall grass at faster speeds. The 20-HP, V-Twin John Deere engine has plenty of power and torque for the Z335E to handle tough mulching, mowing, and bagging conditions – most suitable for a flat with obstacles terrain, up to one acre. Comfortable 15-in back two spring suspension seat, cup holder, side and under seat storage compartments, color coded controls for easy identification and low-fuel warning light visible in daylight.

• Built by John Deere, Greeneville, Tennessee – Experience the Comfort of a John Deere

• The 20-HP V-Twin John Deere engine has plenty of power and torque for the Z335E to handle tough mulching, mowing, and bagging conditions – most suitable for a flat with obstacles terrain, up to one acre

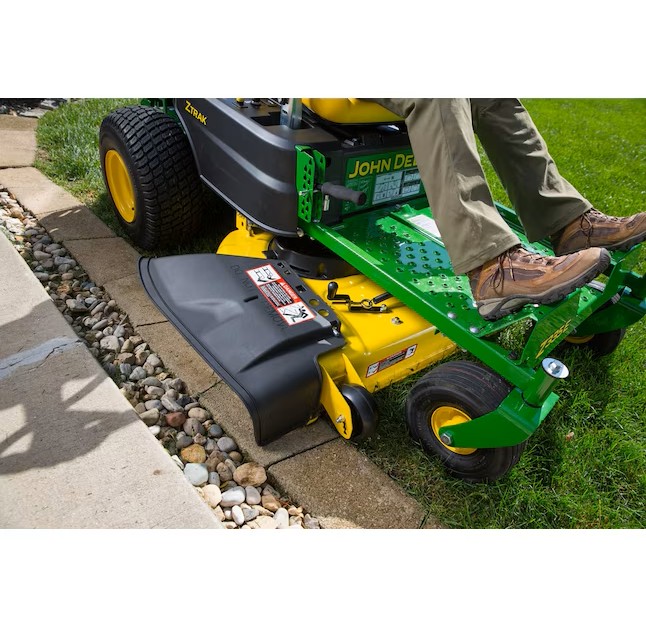

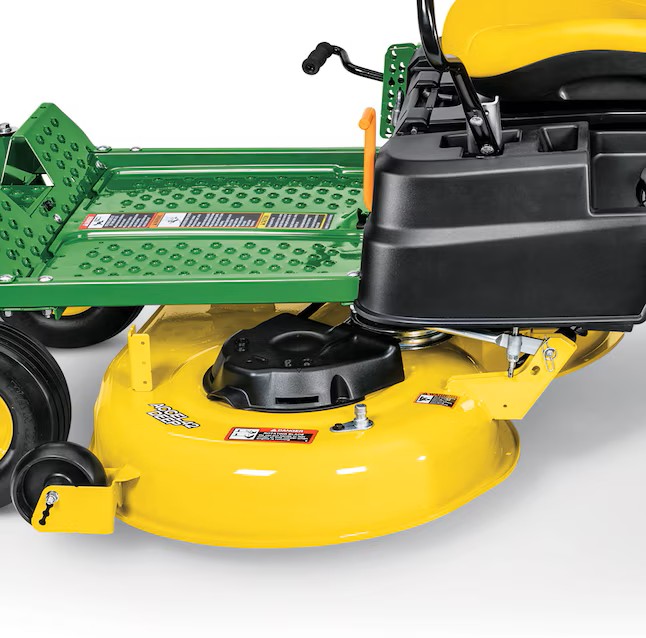

• Mow well fast with the 42-in twin blade Accel Deep™ Mower Deck, engineered to process tall grass at faster speeds

• Dual hydrostatic Hydro-Gear® transmission with 1-in axles for power and durability, maximum forward speed 7-mph - steer using twin-lever controls, effective over long, level tracks of land or around trees, shrubs and flower beds

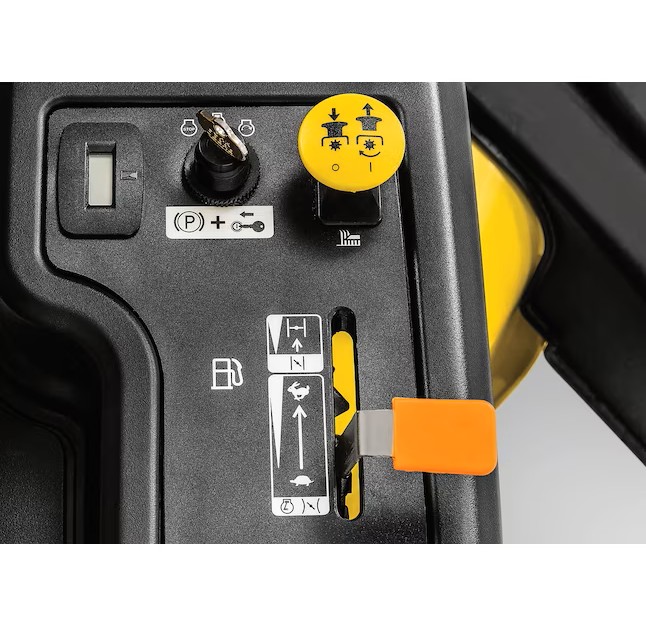

• Comfortable 15-in back two spring suspension seat, cup holder, side and under seat storage compartments, color coded controls for easy identification and low-fuel warning light visible in daylight

• Compatible parts/attachments: 42-in mulch control kit (2636754), 42-in complete bagger (709138), floor mats (1254809), foot lift (1254808), premium handlebars (1254806)

• Premium handlebars w/lights (729669), light kit (1254807), oil (48763), oil filter (228877), air filter (336262), 42-in blades (698349), 42-in belt (712121)

• Hassle Free Ownership: John Deere 2-year/120-hour bumper to bumper warranty, local John Deere dealer support and a 10-Point Pre-Delivery Inspection prior to sale - register your warranty at JohnDeere.com/warrantyregistration

Specifications

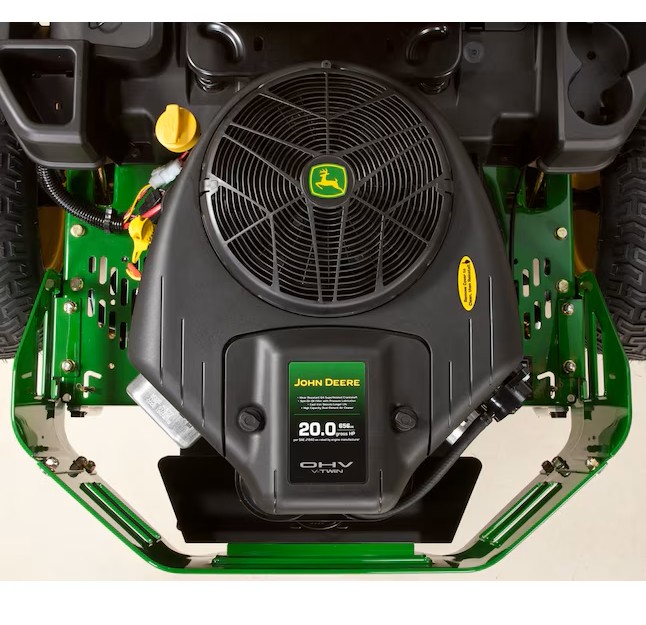

• Engine:

  • Power: 20 hp (14.9 kW)

  • Model: M40 Intek

  • Cylinders: V-twin

  • Displacement: 656 cc

  • Lubrication: Full pressure with replaceable filter

  • Cooling: Air

  • Fuel tank capacity: 7.9 L (2.1 U.S. gal)

  • Battery: 12 V, 300 CCA

  • Choke/speed control: Ready Start single lever

  • Fuel gauge: Low-fuel lightmore.brandt.camore.brandt.ca+5alltractorsinfo.com+5west-equip.com+5Lowe's+5RDO Equipment+5west-equip.com+5Lowe's+3west-equip.com+3alltractorsinfo.com+3

• Transmission:

  • Type: Dual hydrostatic

  • Model: Hydro-Gear EZT

  • Axles: 2.5 cm (1 in.)RDO Equipment+5Lowe's+5Lowe's+5RDO Equipment+1alltractorsinfo.com+1RDO Equipment+2alltractorsinfo.com+2west-equip.com+2

• Speed:

  • Forward: 0–11.3 km/h (0–7 mph)

  • Reverse: 0–5.6 km/h (0–3.5 mph)Deere Africa+3alltractorsinfo.com+3west-equip.com+3

• Mower Deck:

  • Width: 107 cm (42 in.)

  • Type: Accel Deep™ 42A

  • Material: 12-gauge stamped steel

  • Drive system: V-belt

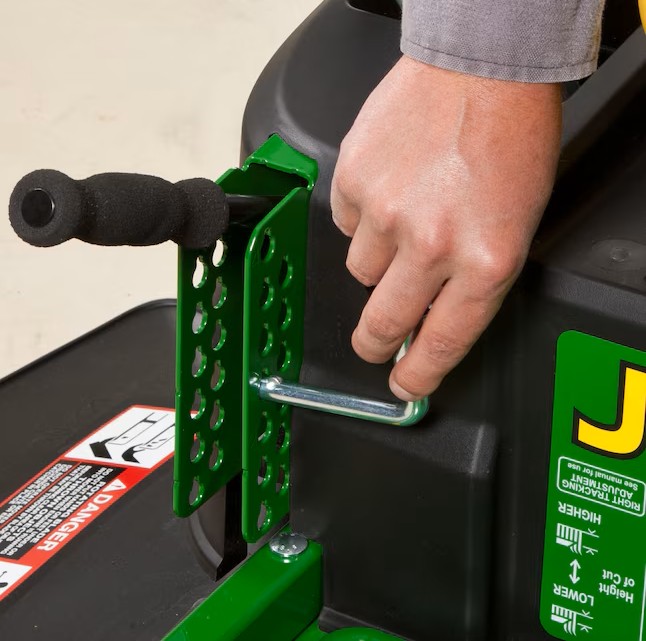

  • Cutting height: 2.5–10.2 cm (1–4 in.), adjustable in 0.64 cm (0.25 in.) increments

  • Discharge: Side

  • Optional MulchControl™ attachmentmore.brandt.ca+1alltractorsinfo.com+1charlies.co.uk+10RDO Equipment+10Deere Africa+10deerequipment.com+6alltractorsinfo.com+6west-equip.com+6

• Chassis:

  • Frame: Heavy-duty formed and welded steel

  • Front caster tires: 11x4-5

  • Drive tires: 18x8.5-8

  • Hour meter: Yes

  • Cup holder: Yes

  • Storage compartment: YesDeere Africa+1more.brandt.ca+1Lowe's+10RDO Equipment+10alltractorsinfo.com+10Lowe's+7rona.ca+7RDO Equipment+7alltractorsinfo.com

• Seat:

  • Back height: 38.1 cm (15 in.)

  • Suspension: Two springs

  • Fore-aft adjustment: 6.35 cm (2.5 in.)alltractorsinfo.com+2west-equip.com+2RDO Equipment+2west-equip.com+2alltractorsinfo.com+2RDO Equipment+2charlies.co.uk+4RDO Equipment+4alltractorsinfo.com+4

• Dimensions:

  • Overall length: 183.5 cm (72.2 in.)

  • Overall width: 131.9 cm (51.9 in.)

  • Height: 92.2 cm (36.3 in.)

  • Wheelbase: 120.7 cm (47.5 in.)

  • Weight (with mower and fuel): 223 kg (491 lbs)
