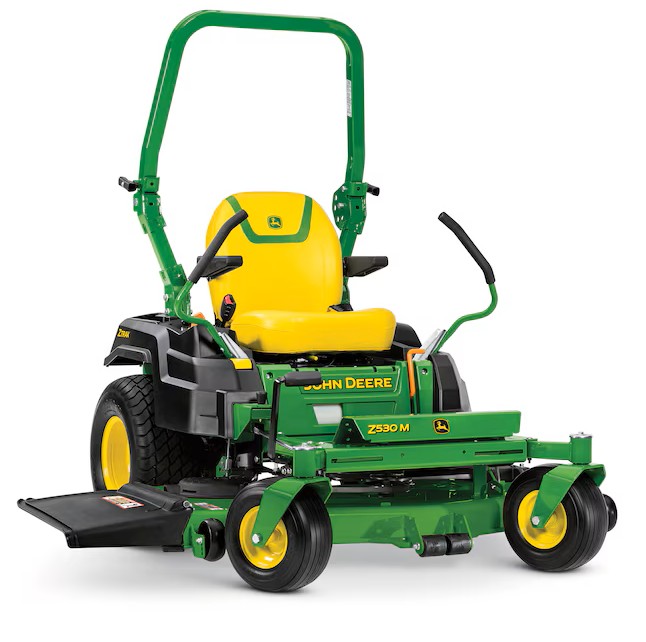

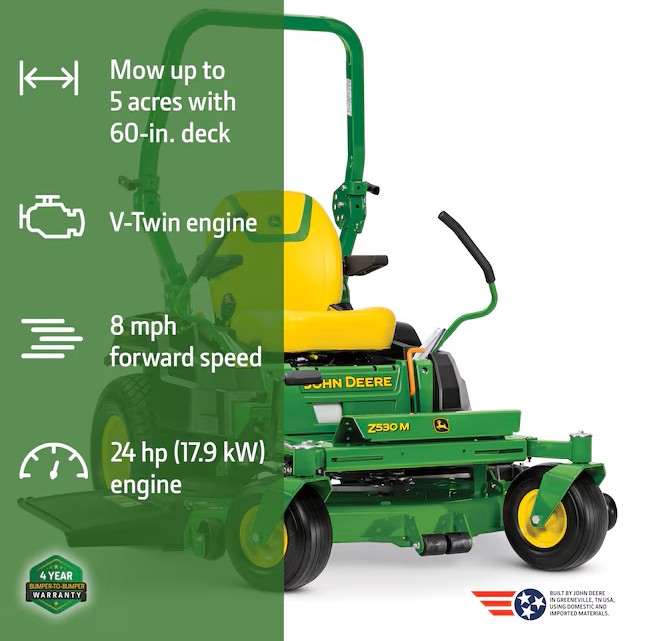

It’s not how fast you mow. It’s how well you mow fast™. Mow well fast with the John Deere 60-in triple blade Accel Deep™ Mower Deck, engineered to process tall grass at faster speeds. The 24 HP John Deere Branded Kawasaki V-Twin engine has plenty of power and torque for the Z530M to handle tough mulching, mowing, and bagging conditions – most suitable for a flat with obstacles terrain, two plus acres. Comfortable 20-in cut and sewn seat with armrests and ComfortGlide™ suspension, cup holder, side and under seat storage compartments, foot lift, color coded controls for easy identification and low-fuel warning light visible in daylight. The Z530M is equipped with a foldable Roll-Gard rollover protective structure (ROPS), retractable seat belt and a 4-year/300-hour bumper to bumper warranty. Rubber floor mats, foot lift and premium handlebars come standard on the Z530M.

• Built by John Deere, Greeneville, Tennessee – Experience the Comfort of a John Deere

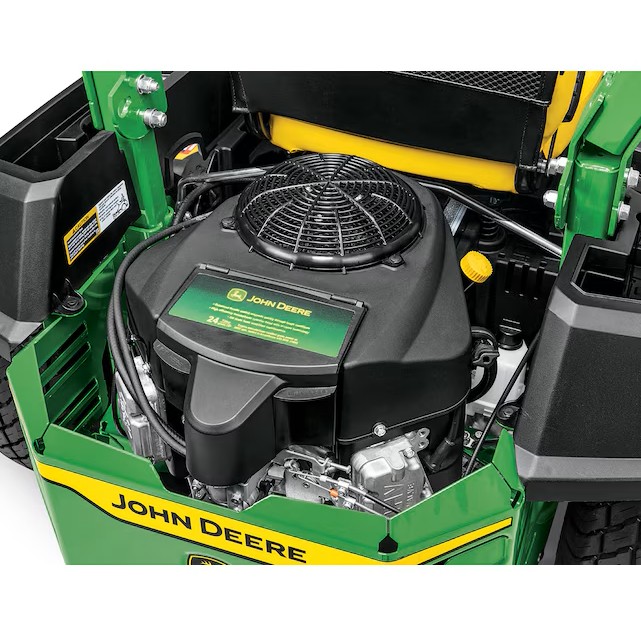

• The 24 HP John Deere Branded Kawasaki V-Twin engine has plenty of power and torque for the Z530M to handle tough mulching, mowing, and bagging conditions – most suitable for a flat with obstacles terrain, two plus acres

• Mow well fast with the 60-in triple blade Accel Deep™ Mower Deck engineered to process tall grass at faster speeds

• Dual Hydrostatic Tuff Torq® transmission with 1-in axles for power and durability, maximum speed 8-mph - steer using motion control levers, effective over long, level tracks of land or around trees, shrubs and flower beds

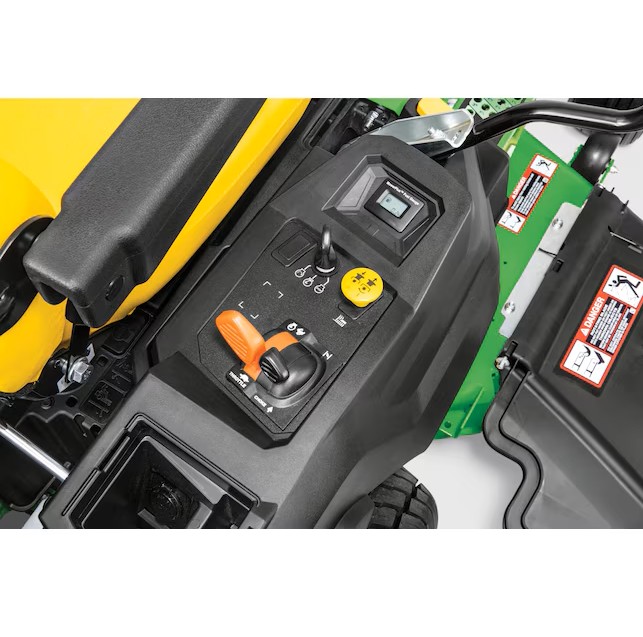

• Comfortable 20-in cut and sewn seat with armrests and ComfortGlide™ suspension, cup holder, side and under seat storage compartments, foot lift, color coded controls for easy identification and low-fuel warning light visible in daylight

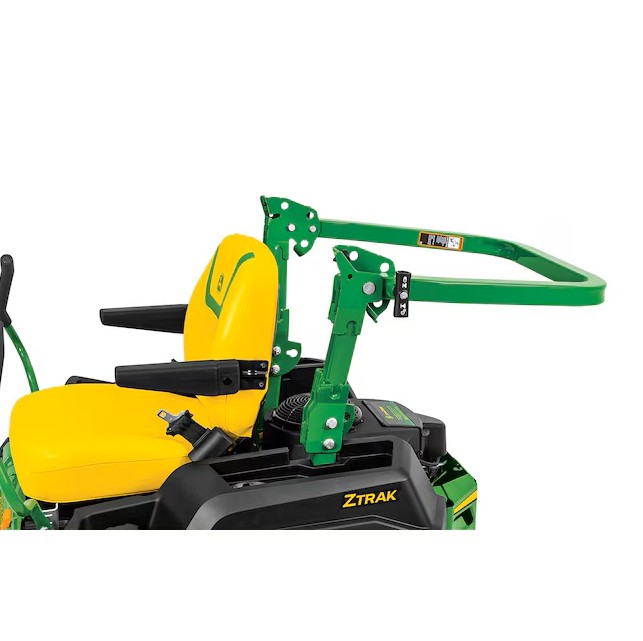

• The Z530M is equipped with a foldable Roll-Gard rollover protective structure (ROPS) and retractable seat belt - rubber floor mats, foot lift and premium handlebars come standard on the Z530M

• Compatible parts/attachments: 60-in mulch kit (2916867), premium handlebars w/lights (729669), LED light kit (2636766), foot pegs (2636767), toolbox (2636758), trash receptacle (2636759), trimmer carrier (2636760)

• Tool carrier (2636761), jack kit (2636762), attachment bar (2636764), hitch kit (2636765), oil (48763), oil filter (228877), air filter (2758977), 60-in mower blades (2758974), 60-in mower belt (733646), material collection system not offered

• Hassle-Free Ownership: John Deere 4-year/300-hour bumper to bumper warranty, local John Deere dealer support and a 10-Point Pre-Delivery Inspection prior to sale

•


Spécifications techniques

• Moteur : Kawasaki FR730V V-twin de 24 ch (17,9 kW)

• Cylindrée : 726 cm³

• Transmission : Hydrostatique Tuff Torq® TZT7-U avec essieux de 2,5 cm (1 po)

• Vitesse maximale : 8 mph (12,9 km/h)

• Capacité du réservoir de carburant : 17 L (4,5 gal US)

• Hauteur de coupe : 1 à 4 pouces (2,5 à 10,2 cm) avec réglage par pédale

• Largeur de coupe : 60 pouces (152 cm)

• Plateau de coupe : Accel Deep™ en acier de 10 jauges (0,135 po / 3,4 mm)

• Système de coupe : Décharge latérale standard, avec option MulchControl™

• PTO : Engagement électrique à 105 lb-pi (142,4 Nm)

• Dimensions :

  • Empattement : 125 cm

  • Longueur totale : 195,3 cm

  • Largeur avec plateau de coupe : 186,4 cm

  • Hauteur avec ROPS replié : 121 cm

  • Poids total : 358 kg

• Roues :

  • Avant : 13x6,5-6

  • Arrière : 22x9,5-10

• Siège : Dossier haut de 20 po (50,8 cm) avec accoudoirs et suspension ComfortGlide™

• Système de levage : Pédale de levage pour un réglage facile de la hauteur de coupe

• Garantie : 4 ans ou 300 heures, selon la première éventualité

• Accessoires optionnels :

  • Kit MulchControl™

  • Kit d'éclairage LED à 4 points

  • Housse de protection

  • Kit de collecte Power Flow™ (non compatible avec le plateau de coupe de 60 po)
