This isn’t just a mower. It’s the ultimate tool for ruling your turf. We’ve taken all the raw power and unyielding strength that makes the TITAN legendary and cranked it up to the MAX. Armed with even more commercial-grade force, from the upgraded transmission to the deck struts, this beefed-up beast is built to obliterate any challenge your acreage throws at it.

• Massive 23-inch rear tires feature aggressive treads meant to bring Mother Nature to her knees—all without tearing up your turf.

• Treaded front casters dial the attitude up to 11, making this one mighty-looking machine.

• Power forward, knowing you've got visibility in any environment with the integrated LED task light.

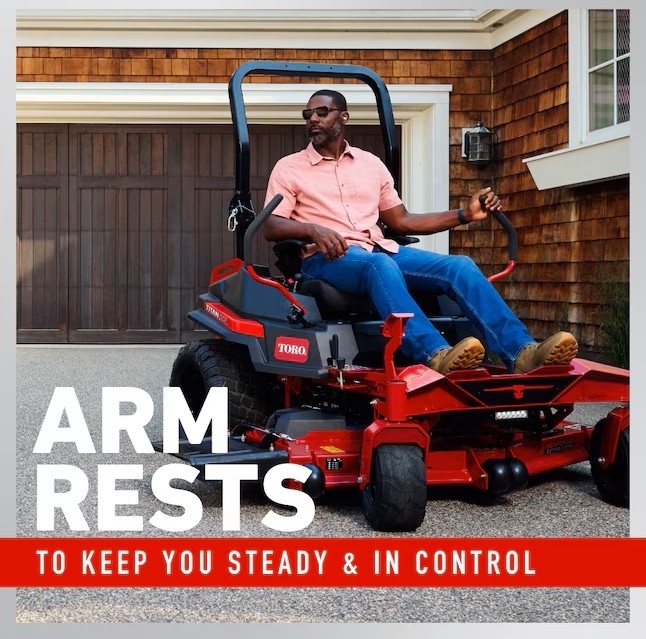

• Built-in arm rests keep you steady and in control so you can push harder, go longer, and never back down.

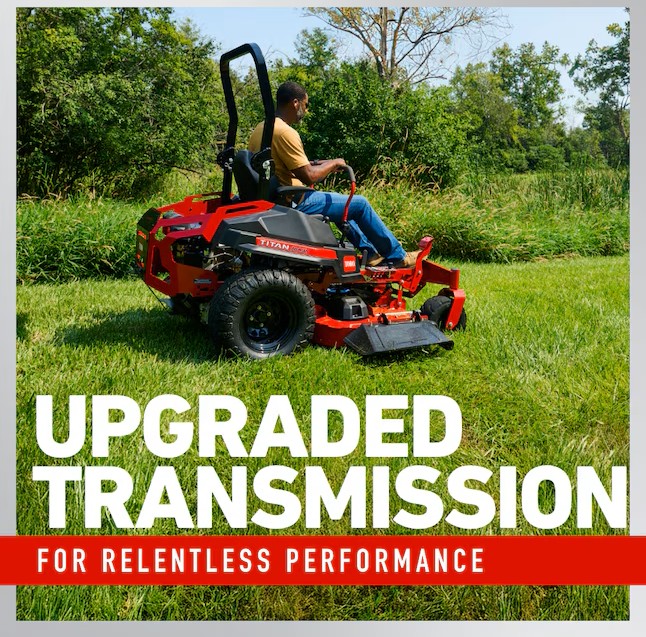

• No matter the challenge, the upgraded transmission drives your forward with maximum force.

• No terrain can throw you off your game; Upgraded compression springs amp up suspension, keeping you locked in on the cut.

• No refills, just relentless power with a 7-gallon fuel capacity

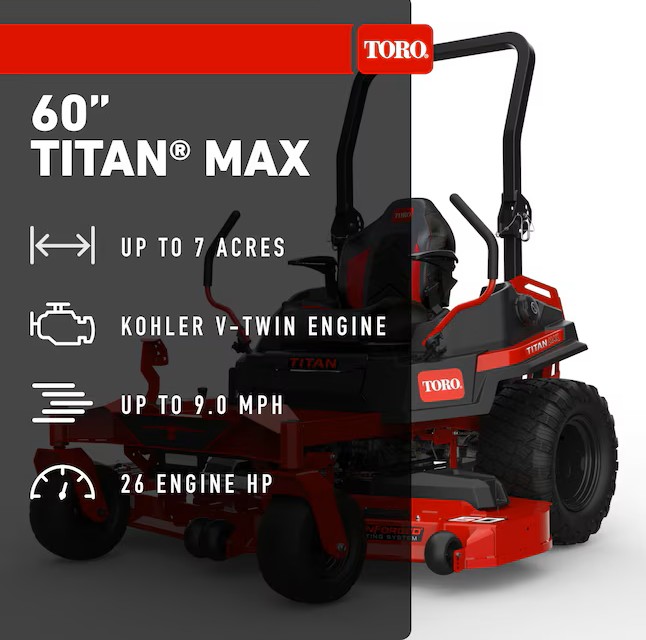

Technical Specifications

• Engine: Kohler 747 cc, 26 HP with professional air filter

• Transmission: Hydrostatic HG-3100 with charge pumps

• Maximum Speed: 9 mph (14.4 km/h) forward, 3 mph (4.8 km/h) reverse

• Cutting Width: 60 inches (152 cm)

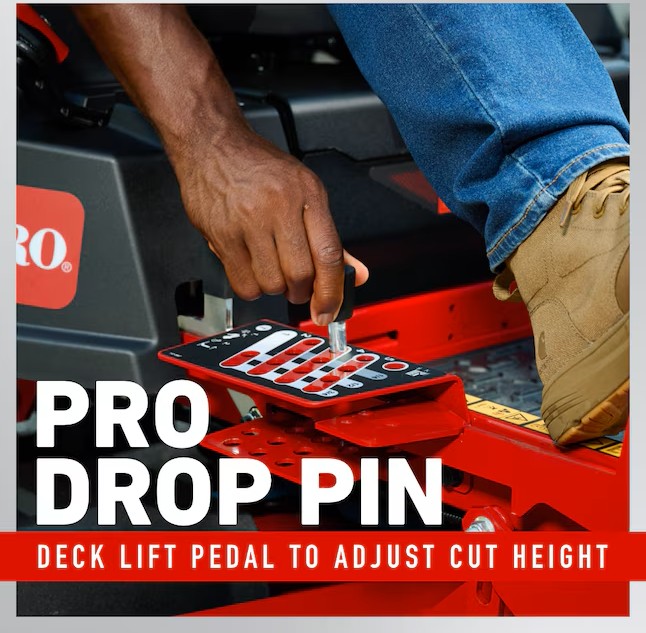

• Cut Height: Adjustable from 1.5 to 5.0 inches (3.8 to 12.7 cm) via foot pedal

• Cutting Deck: 10-gauge forged steel with Bull-Nose reinforcements

• Number of Blades: 3

• Blade Tip Speed: 18,908 ft/min (5,763 m/min)

• Front Wheels: 13 x 6.5 x 6 inches pneumatic

• Rear Wheels: 23 x 12 x 12 inches

• Fuel Tank Capacity: 7 gallons (26.5 liters)

• Weight: 876 lbs (397.3 kg)

• Packaging Dimensions: 91 x 70 x 52.5 inches (231.1 x 177.8 x 133.4 cm)

• Warranty: 4 years or 500 hours, whichever comes first

• Recommended Use: Up to 7 acres (2.8 hectares)
